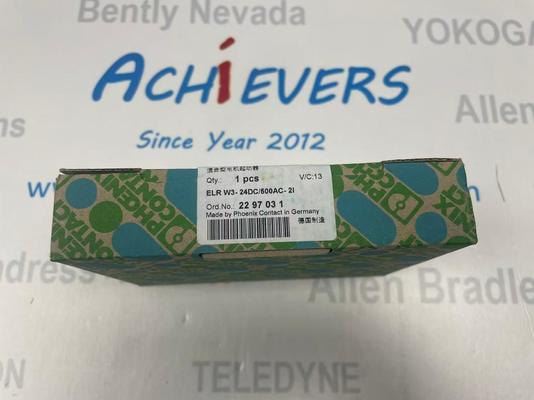

Phoenix Contact ELR W3-24DC/600AC-21 Solid-State Reversing Contactor
Description:
Description: Phoenix
Product No. :ELR W3-24DC/600AC-21
https://www.achievers-automation.com More Products
Phoenix Contact ELR W3-24DC/600AC-21 is a high-performance three-phase solid-state reversing contactor, engineered for reliable motor control and power switching in industrial automation. This page adheres to Google SEO standards with natural integration of core keywords and structured information presentation, featuring accurate technical parameters in the table below.
Detail:
| Product Identification |
Model: ELR W3-24DC/600AC-21; Brand: Phoenix Contact; Product Type: Three-phase solid-state reversing contactor |
Designed for reversing control of AC motors in industrial scenarios |
| Control Input |
Rated control voltage (Uc): 24 V DC; Trigger voltage range: 19.2 V DC – 30 V DC; Rated control current (Ic): 12.7 mA |
Switching thresholds: 9.6 V DC ("0" signal), 19.2 V DC ("1" signal) |
| Input Protection |
Polarity protection; Suppression diode; Surge protection |
Prevents damage from electrical anomalies and ensures stable input operation |
| AC Output |
Rated operating voltage (Ue): 600 V AC; Operating voltage range: 48 V AC – 690 V AC; Rated operating current: 21 A (AC-51/AC-53a) |
Supports 3-phase loads with 100% duty cycle |
| Output Performance |
Peak static voltage: 1200 V; Leakage current: 6 mA; Residual voltage: < 1.5 V; Inrush current: 200 A (t = 10 ms) |
Zero-voltage switching technology reduces electrical interference |
| Switching Capabilities |
Maximum switching frequency: 5 Hz; Reversing frequency: ≤ 10 Hz |
Suitable for frequent start-stop and reversing motor applications |
| Insulation & Safety |
Rated insulation voltage: 600 V; Test voltage (input/output): 5 kVrms (50 Hz, 60 s); Overvoltage category: III; Pollution degree: 2 |
Basic isolation between control input and main circuit ensures operational safety |
| Connections |
Connection type: Screw terminals (M3 thread); Wire size (rigid/flexible): 0.2 mm² – 2.5 mm² (24 – 14 AWG); Stripping length: 8 mm; Tightening torque: 0.5 – 0.6 Nm |
Removable terminals for easy wiring and maintenance |
| Physical Dimensions (W×H×D) |
40 mm × 99 mm × 114.5 mm |
Compact design optimizes space utilization in control cabinets |
| Environmental Ratings |
Operating temperature: -25 °C – +70 °C; Storage temperature: -25 °C – +70 °C; Protection rating: IP20 |
Withstands harsh industrial environments and suitable for in-cabinet installation |
| Status Indicators |
Yellow LED (operating status); Red LED (fault indication) |
Provides real-time visual feedback for quick troubleshooting |
| Key Features |
RCV surge protection circuit; 100% duty cycle operation; Compatibility with standard industrial control systems |
Enhances reliability and versatility in motor control applications |
