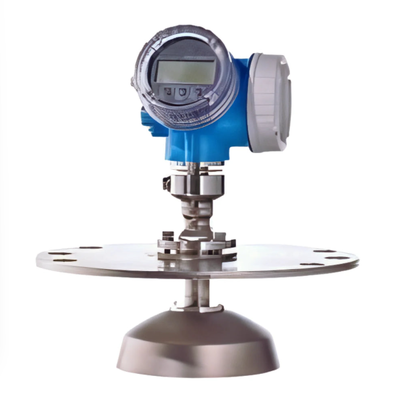

E+H FMR57-EXW5/101Micropilot FMR57 26 GHz Radar Level Transmitter
Product Details:
Manufacturer : Endress+Hauser
Product No. :FMR57-EXW5/101
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The E+H FMR57-EXW5/101 is a high-performance non-contact radar level transmitter manufactured by Endress+Hauser (E+H), belonging to the premium Micropilot FMR57 series. Designed for continuous level measurement of bulk solids and high-demand process conditions, this 26 GHz K-band radar sensor delivers ultra-reliable, maintenance-free level detection even in extreme temperature, pressure, and dusty industrial environments. Featuring high measurement accuracy up to ±3 mm, a maximum measuring range of 70 meters, and comprehensive explosion-proof certification, the FMR57-EXW5/101 supports stable long-term operation for heavy-duty industrial applications. Equipped with HistoROM data management and SIL safety compliance, this E+H radar transmitter ensures consistent measurement stability and simplified on-site commissioning and maintenance.
Detail:
|
Parameter Item
|
Technical Value
|
|
Product Model
|
FMR57-EXW5/101
|
|
Manufacturer
|
Endress+Hauser (E+H)
|
|
Product Series
|
Micropilot FMR57 Radar Level Transmitter
|
|
Measurement Principle
|
Non-contact Time-of-Flight Radar (ToF)
|
|
Radar Frequency Band
|
26 GHz (K-Band)
|
|
Max Measuring Range
|
70 m (230 ft)
|
|
Measurement Accuracy
|
±3 mm (0.12 in)
|
|
Core Characteristic
|
Explosion-proof High-temperature Bulk Solids Level Measurement
|
|
Safety Grade
|
SIL2 / SIL3 Compliant (IEC 61508)
|
|
Calibration Mode
|
3-point / 5-point linearity calibration
|
|
Certification Standard
|
ATEX, IECEx International Explosion-proof Certifications
|
|
Data Management
|
Integrated HistoROM Intelligent Data Storage
|
|
Technical Parameter
|
Specification Data
|
|
Process Temperature Parameters
|
|
|
Operating Process Temperature Range
|
-40 °C ~ +400 °C (-40 °F ~ 752 °F)
|
|
Process Pressure Parameters
|
|
|
Max Process Pressure (Absolute)
|
-1 bar ~ +16 bar (-14.5 psi ~ 232 psi)
|
|
Material Parameters
|
|
|
Main Wetted Parts Material
|
316L Stainless Steel, PEEK, PTFE, Polyamide
|
|
Explosion-Proof Performance
|
|
|
Explosion-Proof Grade
|
ATEX II 1D Ex ta [ia] IIIC T500 °C Da / ATEX II 1/2 D Ex ta [ia Db] IIIC Txx °C Da/Db
|
|
Structural & Installation Parameters
|
|
|
Installation Mode
|
Thread or Flange Process Connection
|
|
Adjustable Beam Angle
|
±15° Maximum deflection with alignment device
|
|
Environmental & Operational Performance
|
|
|
Anti-Interference Capability
|
Stable measurement in dusty, vapor, and complex bulk solids environments
|
|
Maintenance Feature
|
Non-contact measurement, zero wear, maintenance-free operation
|
|
Compliance Standards
|
|
|
Safety Standard Compliance
|
IEC 61508 (SIL2/SIL3), IEC 61511 Functional Safety
|
|
Industry Compliance
|
Global hazardous area certification, industrial process measurement standard
|
Brand
E+H is a global leader in providing measurement instruments, services, and solutions for the process and laboratory industries. Since its founding in 1953, the company has been committed to enhancing production efficiency, safety, and sustainability through innovative technologies. E+H’s product portfolio covers a wide range of areas, including flow measurement, level measurement, pressure and temperature measurement, analytical instrumentation, and data management. Its solutions are widely used in industries such as chemicals, food and beverage, oil and gas, power generation, and water and wastewater treatment.
