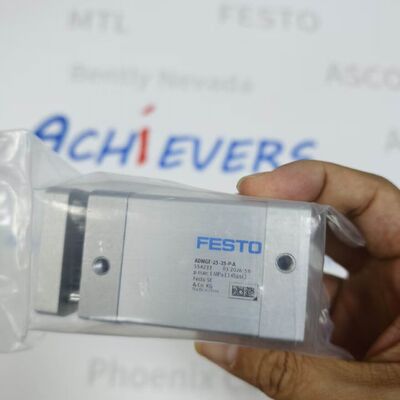

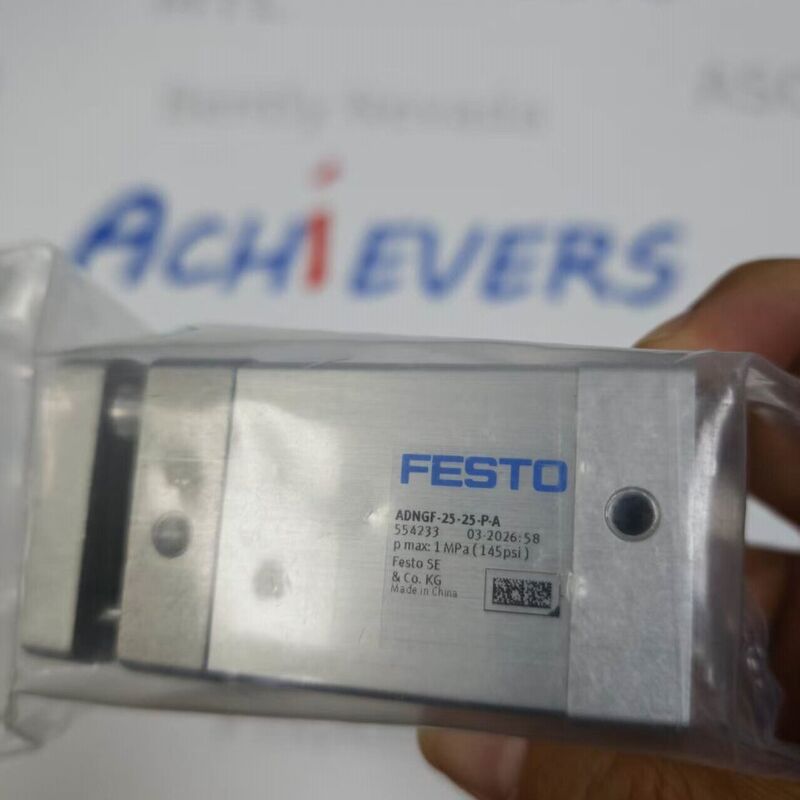

Festo ADNGF-25-25-P-A Guided Compact Cylinder
Description:
Manufacturer : Festo
Product No. : ADNGF-25-25-P-A
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Marked with model suffix P and A, ADNGF-25-25-P-A is equipped with dual-sided elastic cushion rings for silent end-position buffering and pre-reserved slots for magnetic proximity position sensors. Featuring ultra-slim anodized aluminum barrel, M5 pneumatic ports and universal multi-angle mounting holes, the cylinder operates with filtered compressed air in general factory automation environments. It is widely applied for clamping, pushing, lifting and positioning tasks on packaging lines, assembly machines, material handling equipment and electronic processing jigs.
Detail:
| Specification Item |
Technical Parameter |
Standard & Functional Remark |
| Full Model Code |
ADNGF-25-25-P-A |
FESTO ADNGF series guided cylinder SKU |
| Official FESTO Part No. |
554233 |
Unique factory component identifier |
| Brand Manufacturer |
FESTO |
Global industrial pneumatic automation brand |
| Operation Type |
Double acting |
Extend & retract powered by compressed air |
| Piston Bore Diameter |
25 mm |
Standard ISO 21287 size specification |
| Rated Stroke Length |
25 mm |
Fixed single stroke travel range |
| End Cushioning Type |
Elastic cushion rings on both ends (Suffix P) |
No air adjustment required, low impact noise |
| Position Detection Support |
Built-in slots for magnetic proximity sensors (Suffix A) |
Real-time stroke limit signal feedback |
| Operating Pressure Range |
1 bar ~ 10 bar (0.1 MPa ~ 1 MPa) |
Standard industrial compressed air system |
| Theoretical Thrust (6 bar / 0.6 MPa) |
295 N |
Extending forward force output |
| Theoretical Pull Force (6 bar / 0.6 MPa) |
247 N |
Retracting backward force output |
| End Position Max Impact Energy |
0.3 J |
Elastic cushion load absorption capacity |
| Pneumatic Port Thread Size |
M5 |
Compact miniature air connection interface |
| Operating Medium |
Compressed air ISO 8573-1:2010 [7:4:4] |
Dry, filtered air; lubrication optional |
| Moving Internal Mass |
99 g |
Piston + rod + yoke moving assembly weight |
| Specification Item |
Technical Parameter |
Installation & Environmental Remark |
| Complete Unit Net Weight |
279 g |
Lightweight aluminum alloy construction |
| Anti-Torsion Structure |
Dual parallel guide rods + connecting yoke |
Self-guiding, no external slide accessories |
| Allowed Mounting Position |
Any orientation |
Horizontal, vertical, inclined installation supported |
| Operating Ambient Temperature |
-20 °C ~ +80 °C |
Full performance without pressure derating |
| Storage Temperature Range |
-40 °C ~ +90 °C |
Warehouse & transit temperature tolerance |
| Corrosion Resistance Class (CRC) |
CRC 2 |
Moderate humidity & dust factory environments |
| LABS / PWIS Compliance |
VDMA24364-B1/B2-L |
Oil-free sealing for food & paint processing lines |
| Main Barrel Material |
Smooth hard-anodized wrought aluminum alloy |
Low friction, anti-wear surface |
| Piston Rod & Guide Rod Material |
High-alloy stainless steel |
Anti-rust, high linear precision |
| Seal Material |
TPE-U (PUR) elastomer |
Low friction, long service life elastomer seals |
| End Cover & Flange Material |
Anodized aluminum alloy |
RoHS compliant non-toxic metal housing |
| Protection Grade |
IP30 |
Dust-proof for standard indoor automation cabinets |
| Compliance Standard |
ISO 21287, RoHS EU directive |
Global mechanical & environmental norms |
