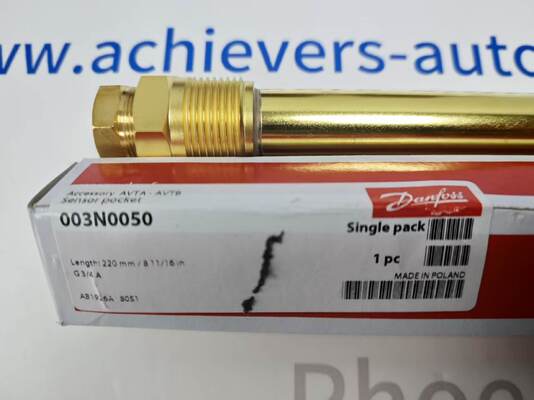

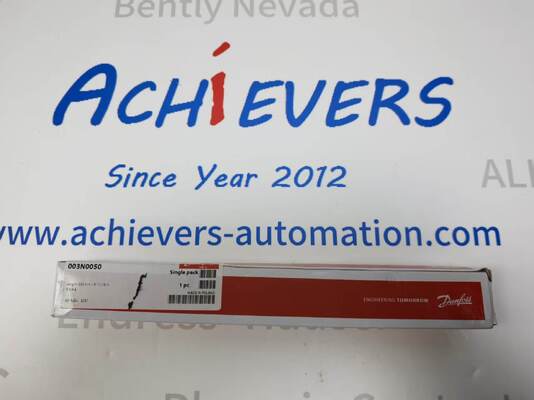

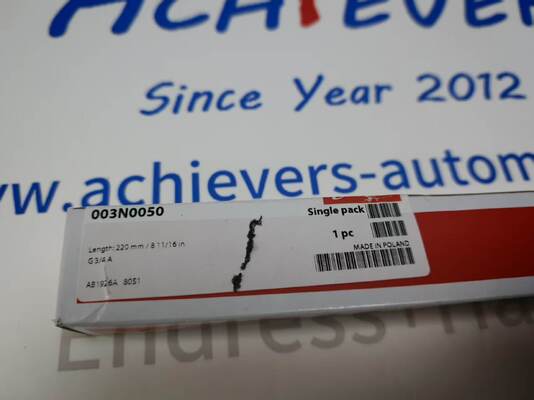

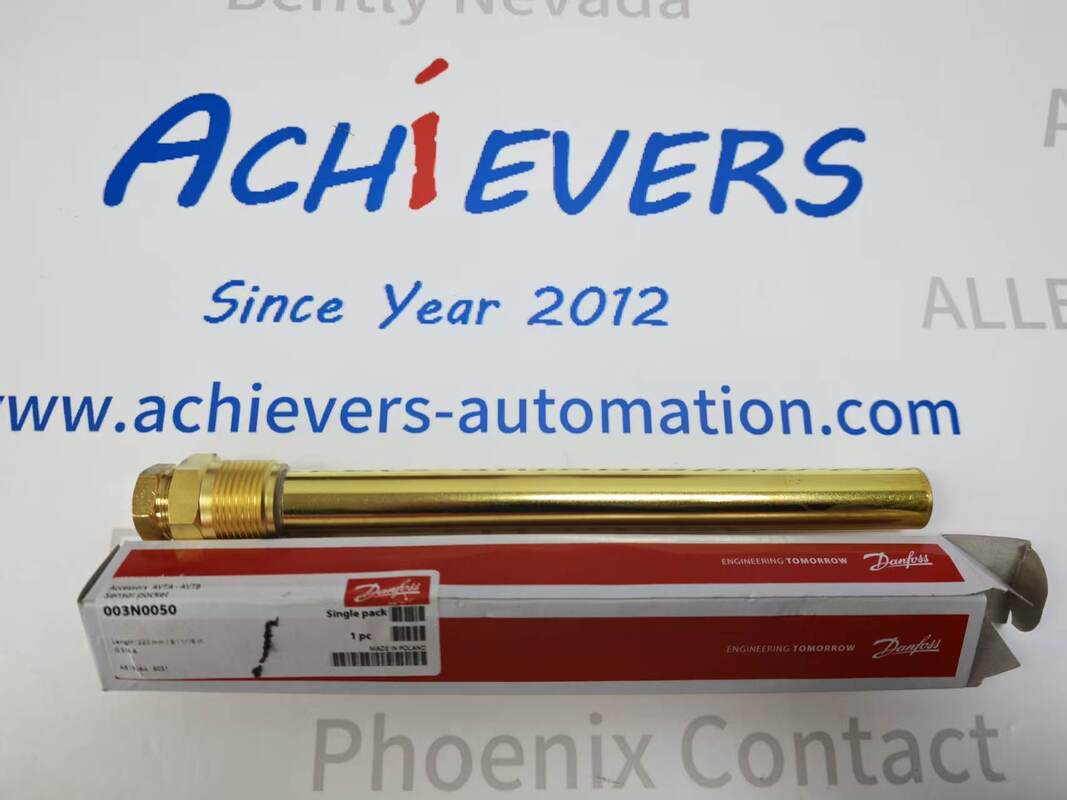

Danfoss 003N0050 Brass Immersion Sensor Pocket
Description:
Description: Danfoss
Product No. :003N0050
https://www.achievers-automation.com More Products
Danfoss 003N0050 is an original factory brass immersion sensor pocket (thermowell) designed as a matching accessory for Danfoss AVTA and AVTB self-acting thermostatic water valves in industrial heating, HVAC, district heating and process temperature control systems.
This Danfoss 003N0050 sensor pocket enables direct immersion temperature sensing inside liquid pipelines, protecting temperature sensing elements from fluid impact, corrosion and high pressure. Manufactured with solid brass body following ISO 228-1 thread standard, the 003N0050 delivers stable long-term performance under continuous industrial operation conditions.
Engineers and facility operators widely select Danfoss 003N0050 for its precise dimensional matching, pressure resistance and seamless compatibility with Danfoss self-acting thermostat series, eliminating fitting gaps and temperature measurement deviation in closed-loop heating systems.
Detail:
| Parameter Item |
Technical Value |
| Manufacturer Brand |
Danfoss |
| Official Part Number |
003N0050 |
| Product Name |
Immersion Sensor Pocket / Thermowell |
| Main Body Material |
Solid Brass |
| Connection Thread |
G3/4 External Thread |
| Thread Standard |
ISO 228-1 |
| Total Length |
220 mm |
| Inner Cavity Diameter |
18 mm |
| Max Allowed Working Pressure |
50 bar |
| Compatible Valve Models |
AVTA, AVTB Self-Acting Thermostatic Valves |
| Net Weight |
0.208 kg |
| EAN Code |
5702423013463 |
| Compliance Standard |
RoHS Compliant |
| Classification Item |
Detailed Specification |
| Connection Type |
External Male Thread Installation |
| Installation Scenario |
Pipeline Immersion Temperature Measurement |
| Applicable Medium |
Hot Water, Glycol Heating Fluid, Low-Viscosity Industrial Liquid |
| Core Function |
Protect temperature sensor probes, isolate sensing elements from process media |
| Matching Sensor Size |
18mm diameter temperature probes |
| Industrial Application Fields |
Commercial HVAC, District Heating, Industrial Process Heating, Boiler Control Systems |
| Construction Feature |
One-piece seamless brass forming, anti-leak thread structure |
| Replacement Compatibility |
Exclusive matching for Danfoss self-operated thermostat accessories |
| Operating Environment |
Indoor & outdoor industrial heating equipment, non-corrosive fluid environments |
