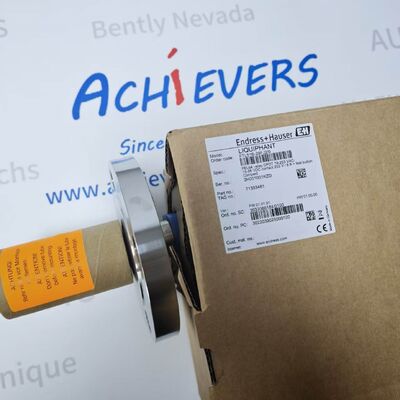

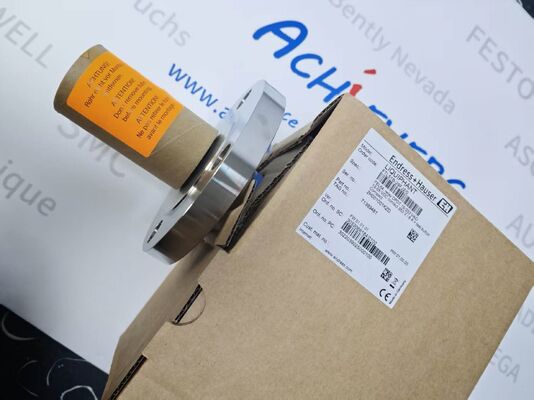

E+H FTL51B-29FJ2/0 Liquiphant Vibronic Tuning Fork Liquid Point Level Switch
Product Details:
Manufacturer : Endress+Hauser
Product No. : FTL51B-29FJ2/0
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Endress+Hauser FTL51B-29FJ2/0 is a vibronic tuning fork point level switch dedicated to liquid medium limit monitoring, adopting piezoelectric resonance measuring principle. When liquid submerges the fork probe, vibration frequency attenuates, and internal electronics trigger switching signals for overfill prevention (MAX) or pump dry-run protection (MIN) logic.
Detail:
| Parameter Item |
Technical Specification |
| Full Model Code |
FTL51B-29FJ2/0 |
| Manufacturer |
Endress+Hauser (E+H) |
| Product Series |
Liquiphant FTL51B Vibronic Liquid Level Switch |
| Measuring Principle |
Piezoelectric Excited Tuning Fork Resonance |
| Wetted Material |
316L Stainless Steel, Surface Ra ≤ 3.2 μm |
| Process Connection |
G1 External Thread (ISO 228-1) |
| Probe Structure |
Straight Extension Tube Fork Probe |
| Electronic Insert Type |
FEL60H, 2-Wire HART 4–20mA SIO Output |
| Supply Voltage Range |
10.5 VDC ~ 35 VDC, SELV/PELV power supply required |
| Signal Mode |
Selectable 8/16mA limit switch or 4–20mA continuous frequency output |
| HART Protocol Version |
HART 7 digital communication |
| Wireless Diagnostic |
Built-in Bluetooth for SmartBlue mobile readout |
| Functional Test Method |
External magnetic test pin / local test button |
| Electrical Cable Entry |
M20 plastic cable gland |
| Transmitter Housing |
Single-compartment reinforced plastic enclosure |
| Minimum Detectable Liquid Density |
0.5 g/cm³ |
| Maximum Allowed Medium Viscosity |
10,000 mPa·s |
| Net Weight |
950 g |
| Switching Hysteresis |
Adjustable via HART parameter configuration |
| Specification Item |
Technical Value |
| Process Medium Temperature |
-50 °C ~ +150 °C |
| Ambient Operating Temperature |
-40 °C ~ +70 °C |
| Storage Temperature Range |
-40 °C ~ +70 °C |
| Process Operating Pressure |
Full Vacuum up to 100 bar absolute |
| Ingress Protection Rating |
IP66 / IP68, NEMA Type 4X / 6P |
| Functional Safety Certification |
SIL 2 certified per IEC 61508, WHG overfill compliant |
| Anti-Interference Performance |
Unaffected by foam, bubbles, vibration, medium buildup |
| Supported Safety Logic |
MAX (Overfill Alarm) / MIN (Dry-Run Protection) selectable |
| Hazardous Area Version |
Non-explosion standard design; Ex variants available separately |
| Global Certifications |
CE, RoHS, cULus, marine approval options |
| Periodic Proof Test |
Guided SIL test wizard via SmartBlue App |
| Allowed Cable Cross-Section |
0.5 ~ 2.5 mm² for terminal wiring |
| Diagnostic Functions |
Fork fault detection, supply voltage monitoring, NAMUR NE 107 fault reporting |
| Service Characteristic |
Maintenance-free, no moving mechanical wear parts |
