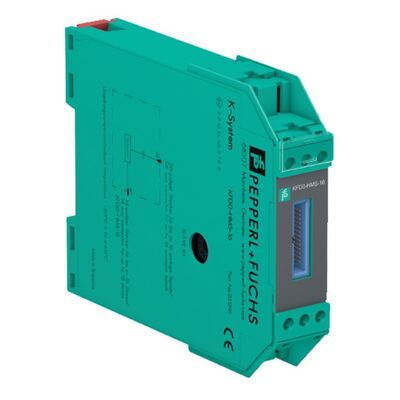

Pepperl Fuchs KFDO-HMS-16 high-performance HART MUX secondary module
Description:
Manufacturer : Pepperl+Fuchs
Product No. : KFDO-HMS-16
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Pepperl+Fuchs KFDO-HMS-16 is a high-performance HART MUX secondary module designed to operate with up to 16 analog field devices. As a key component of the HART multiplexer system, this module must be used in conjunction with the HART MUX primary module KFD2-HMM-16, forming a reliable solution for industrial process control and monitoring applications. Compliant with international safety standards up to SIL 3, the KFDO-HMS-16 ensures stable and secure signal transmission, making it suitable for demanding industrial environments. Its compact design and easy DIN rail mounting further enhance its adaptability in various control cabinet setups.
Detail:
|
Specification Item
|
Details
|
|
Model
|
KFDO-HMS-16
|
|
Brand
|
Pepperl+Fuchs
|
|
Compatibility
|
Must be used with primary module KFD2-HMM-16
|
|
Number of Channels
|
16 channels
|
|
Power Supply
|
Powered by primary module via 14-pin flat cable, no external power needed
|
|
HART Compatibility
|
HART field device input (Revision 5 to 7)
|
|
Safety Standard
|
IEC/EN 61508, SIL 3
|
|
Connection
|
14-pin flat cable (master-slave connection); 26-pin flat cable (analog signal input)
|
|
Leakage Current
|
< 3 µA at -20 ... 85 °C (-4 ... 185 °F)
|
|
Terminating Resistor
|
External 230 ... 500 Ω (standard), up to 1000 Ω possible
|
|
Output Voltage
|
≥ 400 mVss (with specified terminator resistance)
|
|
Output Resistance
|
100 Ω or smaller, capacitive coupling
|
|
Input Impedance
|
According to HART specification
|
|
Input Voltage Range
|
0.08 ... 4 Vss; typical ± 5.2 V as local reference
|
|
Ambient Temperature
|
-20 ... 65 °C (-4 ... 149 °F)
|
|
Protection Degree
|
IP20 (IEC 60529:2001)
|
|
Dimensions (W x H x D)
|
20 x 93 x 115 mm (0.8 x 3.7 x 4.5 inches), Housing Type B1
|
|
Weight
|
Approx. 100 g
|
|
Mounting
|
35 mm DIN mounting rail (EN 60715:2001)
|
|
Directive Conformity
|
EMC: 2014/30/EU EN 61326-1:2013; ATEX: 2014/34/EU EN 60079-0:2012 + A11:2013, EN 60079-15:2010
|
|
Certificate
|
PF 07 CERT 1143 X; Marking: II 3 G Ex na IIC T4 Gc
|
